Agilia® Dedicated Infusion Lines

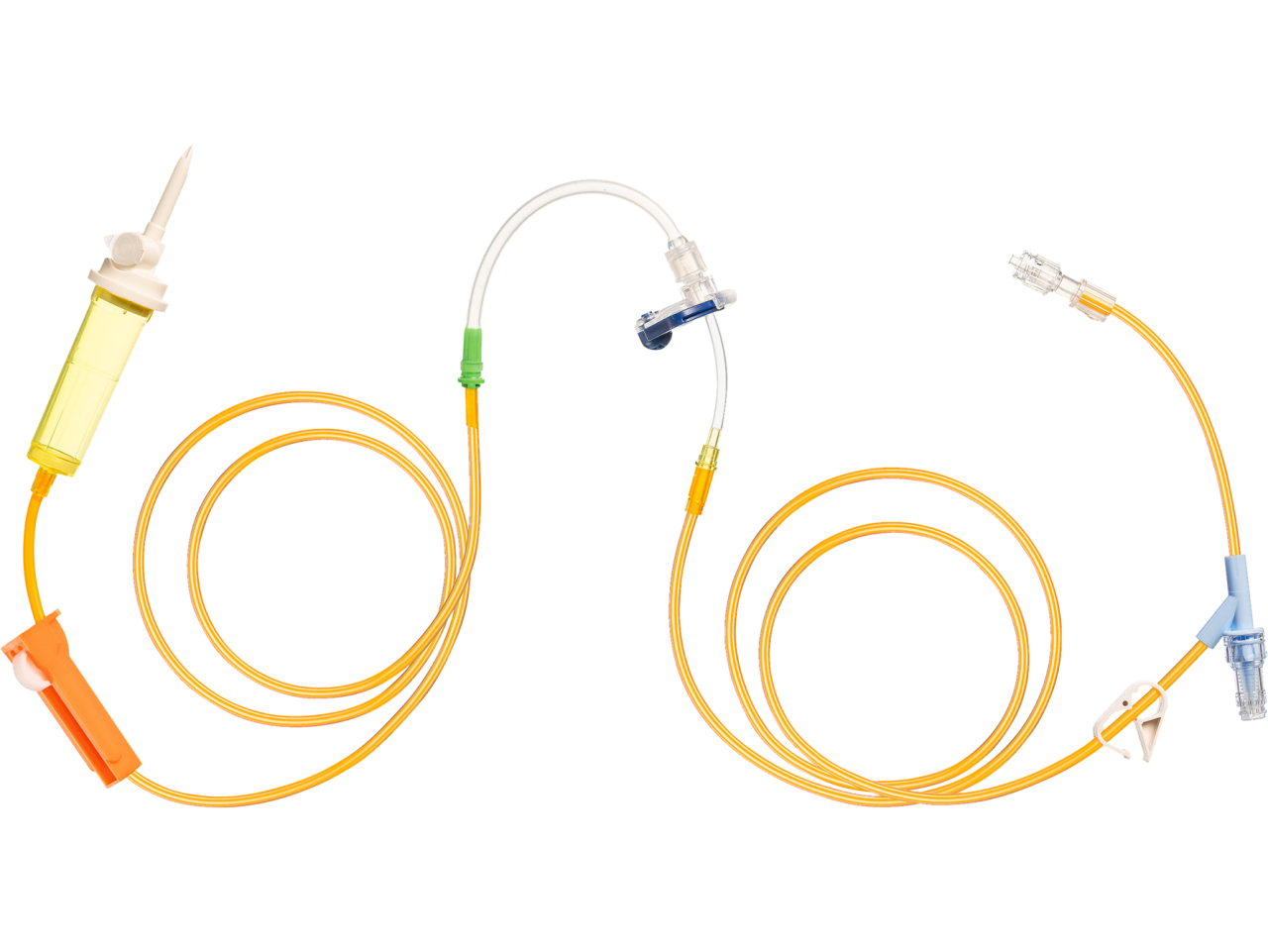

Volumat Lines are dedicated infusion and transfusion lines for Volumat Agilia pumps. Multiple options and configurations are available to address your infusion and transfusion needs:

  • Available for infusion, transfusion, oncology, parenteral nutrition and paediatric usage.
  • The freeflex® connector allows for a tight and secure connection to the bag.
  • Light protected for light-sensitive medicine.
  • Antibacterial and air-eliminating filter which provides additional protection against bacterial contamination.

Details

Fresenius Kabi System - Dedicated to safety

The Agilia family offers a complete range of infusion pumps, accessories, and administration sets to cover all major IV medicine administration needs.

Precise sets with a perfect fit
The Volumat Lines have been especially designed for the Agilia pumps to warranty a perfect fit and control of the flow of IV medication.

Unique OCS for complete security
The Occlusivity Check System (OCS) verifies the proper functioning of the pump in association with the silicone segment of the administration set to prevent free-flow. The efficiency of this combination is tested whenever the set is installed by performing the OCS test.

Automatic flow stop
The SafeClip on the Volumat Lines automatically clamps the line to avoid any risk of free-flow when the door is opened and when the set is removed. The risk of an unclosed roller clamp is eliminated.

Ease of use
The set connectors have the same blue & green color and shape as the dedicated slots in the pump for an intuitive and fast installation of the set. This system makes it impossible to insert the set the wrong way.

Abbreviation:
IV = intravenous

These lines are available in different configurations to better match the different local practices:

• Standard and Parenteral Nutrition lines for infusion of standard solutions and parenteral nutrition.

• Transfusion lines for blood transfusion. Transfusion lines are equipped with a 200 μm filter in the drip chamber to avoid filtration of important blood components. Multiple set configurations are available.

• Paediatric lines for paediatric infusion therapy. Paediatric lines are equipped with a low diameter tube to limit priming volume or burette to deliver a defined volume.

• Oncology lines for oncological infusion therapy. Oncology lines have multiple configurations (special filters, side lines or upper needle-free access) to cover patients' needs.

• Special lines for infusion therapy. Set configurations have been customized to specific requirements.

NEW Features:
• Volumat Lines with integrated K-Zero® for connecting a secondary line or administrating medication through a syringe.

• Volumat Lines with PE Material consist of three-layer tubing system (PVC-EVA-PE). PE Material is flexible, transparent and durable.1



References:

1. Data on file at Fresenius Kabi internal drug compatibility report DHF-GPI-005681-R00.

Abbreviations:
EVA = ethylene vinyl acetate
PE = Polyethylene
PVC = Polyvinyl chloride

Dedicated Lines

Material No.Product CodeProduct DescriptionBox Qty
M46441300SFPDVLST10SStandard Infusion Set 30
M46442500YFPDVLST22YStandard Infusion Set, 2k-Zero30
M46442600YFPDVLST42YStandard Infusion Set, 2k-Zero, Back Check Valve30
M46442800SFPDVLTR00SBlood Transfusion Set, 200 µm Filter30
M46442700YFPDVLTR12YBlood Transfusion Set, 200 µm Filter, 1k-Zero30
M46444600SFPDVLON70SStandard Infusion Set, 0,2 µm Filter30
M46444900SFPDVLON90SOpaque Infusion Set, PVC-Free 30
M46444300SFPDVLPN00SParenteral Nutrition Set, 1,2 µm Filter30
M46444350FPDVLPN93Parenteral Nutrition Set, 1,2 µm Filter Opaque30
M77460020FPDVLSL20Secondary Line PVC-Free60
M46443400YFPDVLSP62YPVC Free Infusion Set, 1k-Zero30
M46445200YFPDVLPA92YPaediatric Burette Set 150 mL, 2k-Zero10
M77460020FPD2909301Lipifil Air 24h PVC-free, 1,2 µm Filter50
M46444230YFPDVLON22OPNFOncology Set With 2 K-Nect, PVC-Free30
M46444000YFPDVLON42Oncology Set With 4 K-Nect, PVC-Free25
M77460069YFPDVLSL20IPSecondary Line SL IP60
M77460068YFPDVLSLOPIPSecondary Line SL OP IP60

Abbreviations:
PVC = Polyvinyl chloride
