CompoSelect In-line Systems

Intelligent Blood Bag Configurations

Excellence in whole blood processing combining our expertise in leukocytedepletion filters with intelligent blood bag configurations.

Filter Efficiency
The filter provides short filtration time, low volume loss, and user-friendly handling. Seamless priming means no need for any intervention.1

Filter Quality and Safety
The state-of-the-art filter is produced on fully automated lines. This allows 100% in-process control of the product quality.

1. White paper – Fresenius Kabi Bioflex WB filter- N. Sala, W.F. Boeker

Refer to Operator’s Manual and/or Instructions for Use for the full list of warnings and cautions associated with the uses of products or devices shown on this site.

Details

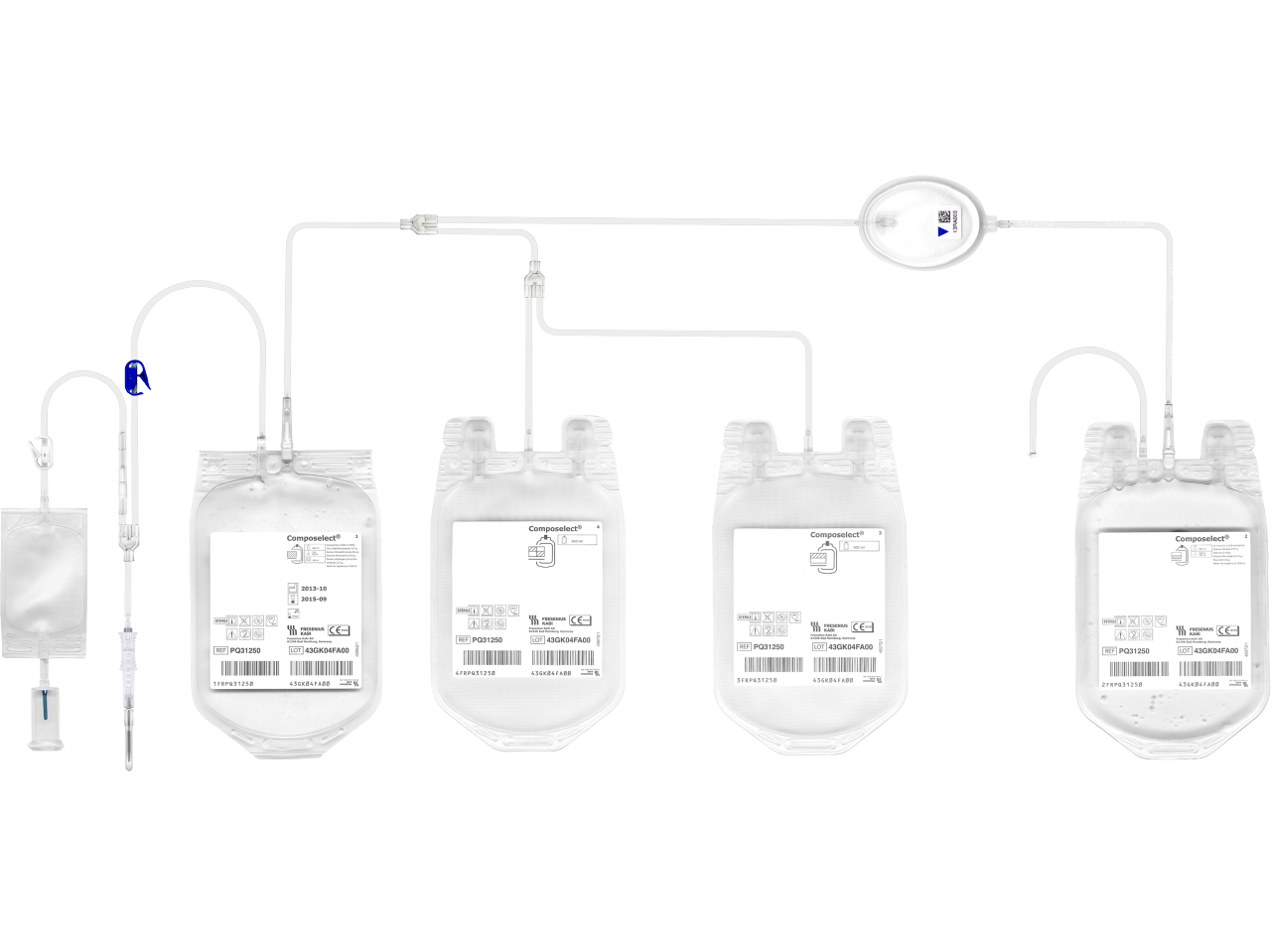

In-line Blood Bag Systems

RT-Needle Plus
  • Safety needle with integrated needle protector
  • High flow reduces donation times by 20%1
  • Tamper-proof needle cap
CompoFlow
  • Increased effectiveness by reduced preparation time and high level of automation*
  • Improved ergonomics3 by automatic opening of CompoFlow caps2
  • Wide bore tube allows an average processing time of 2 minutes because of faster red cell concentrate transfer3
Wide Portfolio Range
  • Automated blood component separator CompoMat G5 Plus including automated CompoFlow opener
  • CompoGuard mixing scale for safe and efficient whole blood donations
  • Large variety of transfer sets and accessories
1. Van der Meer et al., Vox Sang. 97:21, 2009
2. Serrano et al., Transfusion 50:2240, 2010
3. Sanquin Research, Depart. Blood Cell Research, data on file.

*Compared to standard breakers

RT-Needle = ReTractable Needle

Convenient Blood Processing Resulting in High-Quality Blood Components

Flexible WB in-line filter
CompoSelect WB
  • Flexible whole blood filter with high performance fiber
  • Average filtration time < 12 minutes1
  • Stable performance in a wide range of conditions
  • Minimum volume loss, average red blood cell (RBC) recovery 93%1
  • Considerable low occurrence of blockages2
Flexible red cell concentrate RCC in-line filter
CompoSelect RCC
  • Residual leukocytes on average < 0,3 x 105 3
  • RBC recovery on average > 90%3
  • Comprehensive portfolio including double filter in-line systems: RCC for buffy coat (BC) method, RCC for platelet rich plasma (PRP) method, RCC + Platelet filter, RCC + Plasma filter
  1. Filtration of whole blood stored over night at room temperature, internal product validation, 2016, data on file.
  2. Vox Sang. 2021;116(Suppl.1), p. 169 P-259 Evaluation of whole blood flex filter in routine setting of a regional blood bank.
  3. RCC produced acc. BC method, validation data and routine data of European blood centers, data on file.
BC = Buffy coat

System Description
  • Indication: Leukocyte depletion of 1 unit of whole blood
  • Single use
  • Latex free
  • RT-Needle Plus: Ergonomic hub design and bevel indicator for correct needle positioning at venipucture
  • Blood bag material: Robust PVC/DEHP foil with an internal diamond structure
  • Label: Tamper proof PVC material, symbol label design according to ISO norm
  • CompoFlow bag closure device (optional)
  • Reduced haemolytic incidents by prevention of insufficiently opened bag breakers1
Filter Specifications
  • Filter made by melt blown, non-woven surface-treated polyester material
  • Neutral charge fiber surface, minimizing interactions with plasma proteins
  • Excellent wetting characteristic
  • Flexible, transparent housing with laser-printed batch number
  • Filter integrity tested by 100% in-process control
1. Richter et al., Data on file

Contact your local Fresenius Kabi representative for ordering information and accessories.
