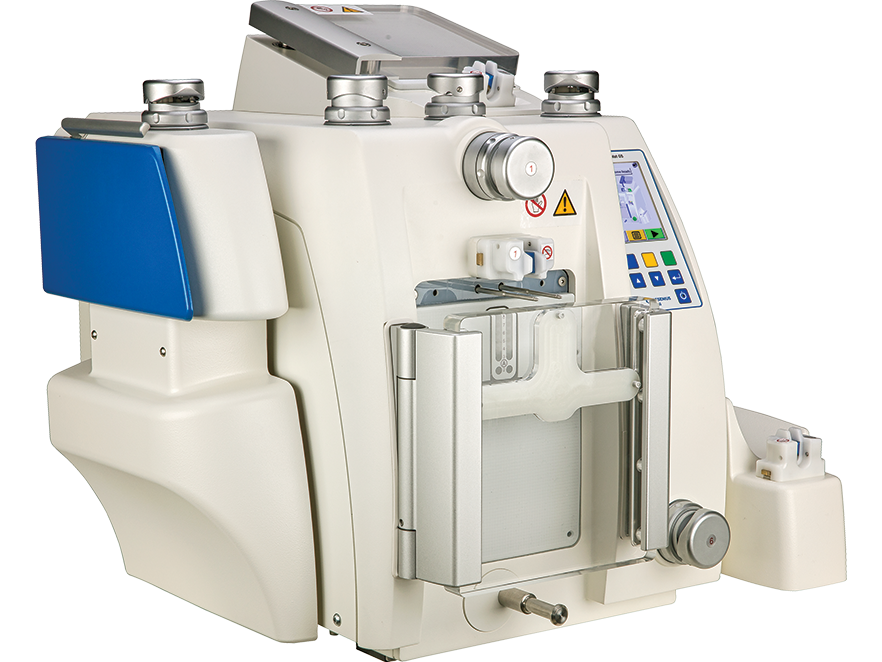

CompoMat G5 Plus

CompoMat G5 Plus Blood Component Separator standardizes blood component separation by combining the innovations of the CompoFlow closure device and wide-bore tubing for faster top and bottom separation.

  • Flexibility to work with all blood bag types on the market
  • Advanced technology platform with Wi-Fi network and CompoMaster Net G5 Plus. Option to combine with the Fresenius Kabi DXT Data Management system.

Refer to Operator’s Manual and/or Instructions for Use for the full list of warnings and cautions associated with the uses of products or devices shown on this site.

Details

Automation for Easier Blood Component Separation

Movable Sealing Heads
  • Integrated optical and adjustable sensor
  • Movable lids
  • Reliable high frequency sealings
  • Tube insert surveillance with alarm function
Exchangeable Modules
  • CompoMat G5 Plus automatic opener for CompoFlow caps
  • Modules for automatic opening of traditional breaker
Plasma Balance
  • Automated weighing and air removal
  • Auto-tare function
  • Short tube length ‹ 3 cm


The traditional bag breaker is replaced by a patented cap, automatically squeezed by the CompoMat G5 Plus opener.
Advantages of the CompoFlow bag system:
  • Standardized positioning, squeezing, and opening of the CompoFlow cap; fully automated2
  • Special form coding prevents application errors1
  • Reduced risk of hemolysis from incorrect processing due to standardization of the breakaway opening process1
  • More operator comfort2
Wide Bore Tubing

Advantages of wide bore tubing:
  • Average separation time with Top and Bottom system typically ≤ 2 minutes3
  • Large diameter reduces processing time up to 26%4
  • Low hemolysis rate3
  1.  I.J Bontekoe et al. Separation of centrifuged whole blood and pooled buffy coats using the new CompoMat GE: 3 years experience. Vox Sanguinis (2014); 107(2): 140-7
  2. K. Serrano et al. Performance characteristics of novel blood bag in-line closure device and subsequent product auality assessment. Transfusion (2010); 50(10): 2240-8
  3. Sanquin Research. Department of Blood Cell Research
  4. Fresenius Kabi internal validation data

CompoMat G5 Plus

Weight: 40 kg

Power Supply: 100 to 240 Vac, 50/60 Hz

Max. Power Consumption: 240 VA

HF Frequency: 40.68 MHz ± 10kHz

Tubing Specification: 3.9 mm to 5.4 mm (max 0.8 mm wall thickness)

Tube Material: PVC tubing

Operating Conditions: Operating temperature +15 °C to + 30 °C, Permissible relative humidly 35% to 75%

Contact your local Fresenius Kabi representative for additional technical information.


CodeItemQuantity
9026561CompoMat G5 Plus1 unit
9026551CompoMaster NET. Data management software dedicated to the CompoMat G5 Plus.1 unit
9026521PLS Weighing Scale1 unit
9026551RBC Weighing Scale1 unit
9026431Automatic Breaker (no. 7)1 unit
9025611Barcode scanner dedicated to CompoMat G5 Plus1 unit
M694391SPCoupling Tool for adjusting automatic breaker1 unit

Contact your local Fresenius Kabi representative for additional ordering information and accessories.
