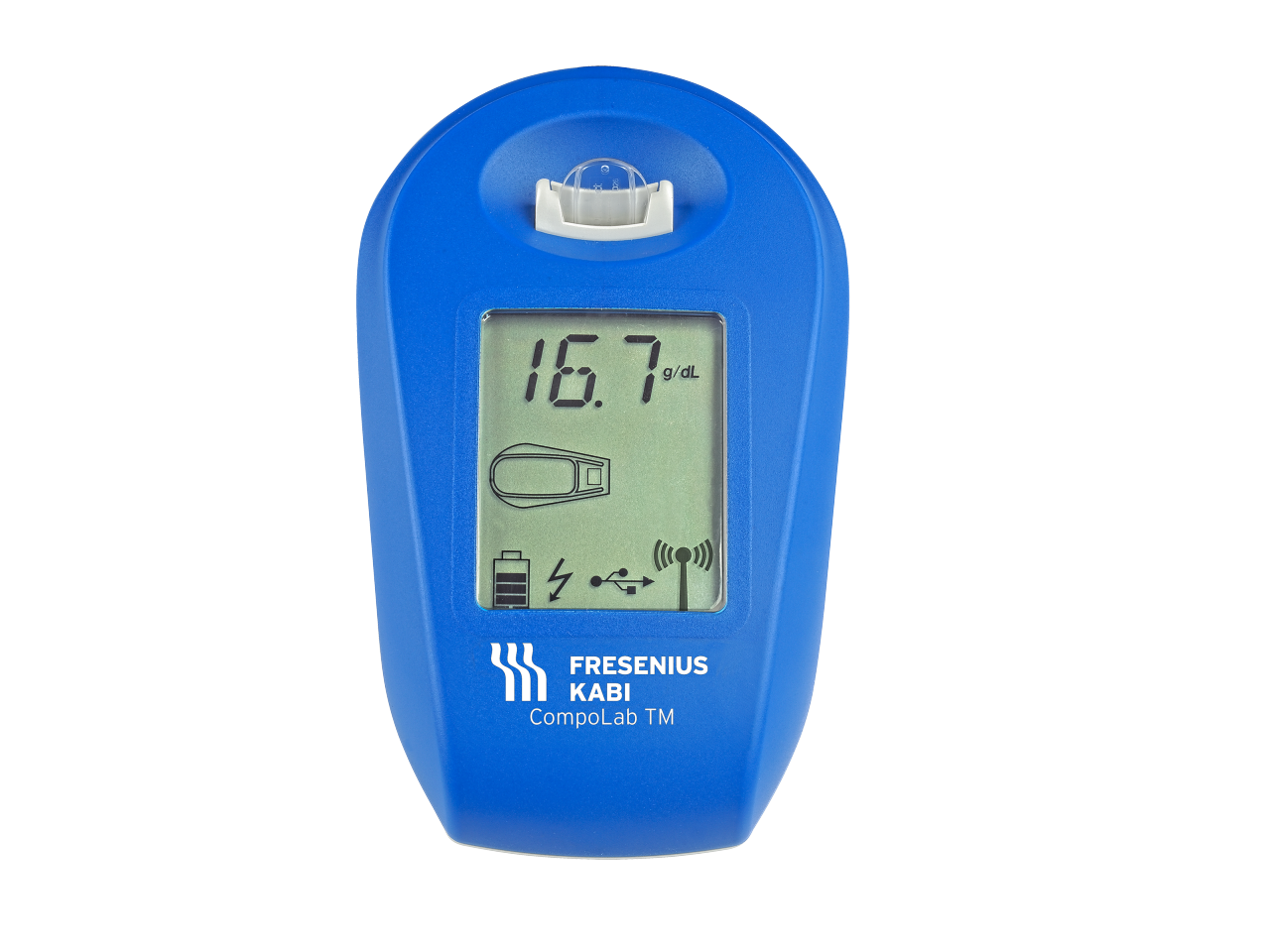

CompoLab TM

Handheld Hemoglobin Analyzer with Fast Measuring Time

CompoLab TM is a rapid screening device designed to measure hemoglobin levels from capillary blood. Lightweight and compact with a long-lasting battery charge, it fits right in both your mobile and fixed collection environments providing accurate measurements using a broad spectrum photometer and an integrated self-check before each measurement.

Refer to Operator’s Manual and/or Instructions for Use for the full list of warnings and cautions associated with the uses of products or devices shown on this site.

Details

Highlights
Benefits
Technical data
Ordering

Ergonomic and easy to use hemoglobin analyzer, CompoLab TM brings efficiency and accuracy to blood center operations

Display always in stand-by mode, device ready to use
Light weight, approx. 180 g
Optional Fresenius Kabi software “HB-Master” can be installed on local PC, easy data transfer via USB cable
Optional barcode scans, simply connect our barcode scanner to the PC

Hemoglobin Analyzer with Less than 2 Seconds Measuring Time

Air vent prevents formation of bubbles in the cuvette
Cuvette shelf life 2.5 years even in opened foil bag
Can be filled from any angle
Only one drop of blood needed
No moving parts, robust for mobile use
No maintenance needed according to operating instruction
Two charging possibilities, USB and adapter plug

Dimensions and Weight

Analyzer dimensions
L = 15 cm, W = 9 cm, H = 4 cm

Analyzer weight
Approx. 180 g

Dimensions of transport box
L = 23 cm, W = 16.5 cm, H = 7 cm

Weight of analyzer and transport box
Approx. 570 g

Contact your local Fresenius Kabi representative for additional technical information.

Code	Item	Quantity
9034000	CompoLab TM Hemoglobin Analyzer	1 unit
9034050	CompoLab TM Cuvettes (provided in 5 foil pouches containing 100 cuvettes each)	500 cuvettes/case

Contact your local Fresenius Kabi representative for full ordering information and accessories, or download the Transfusion and Cell Technologies Product Catalog.
