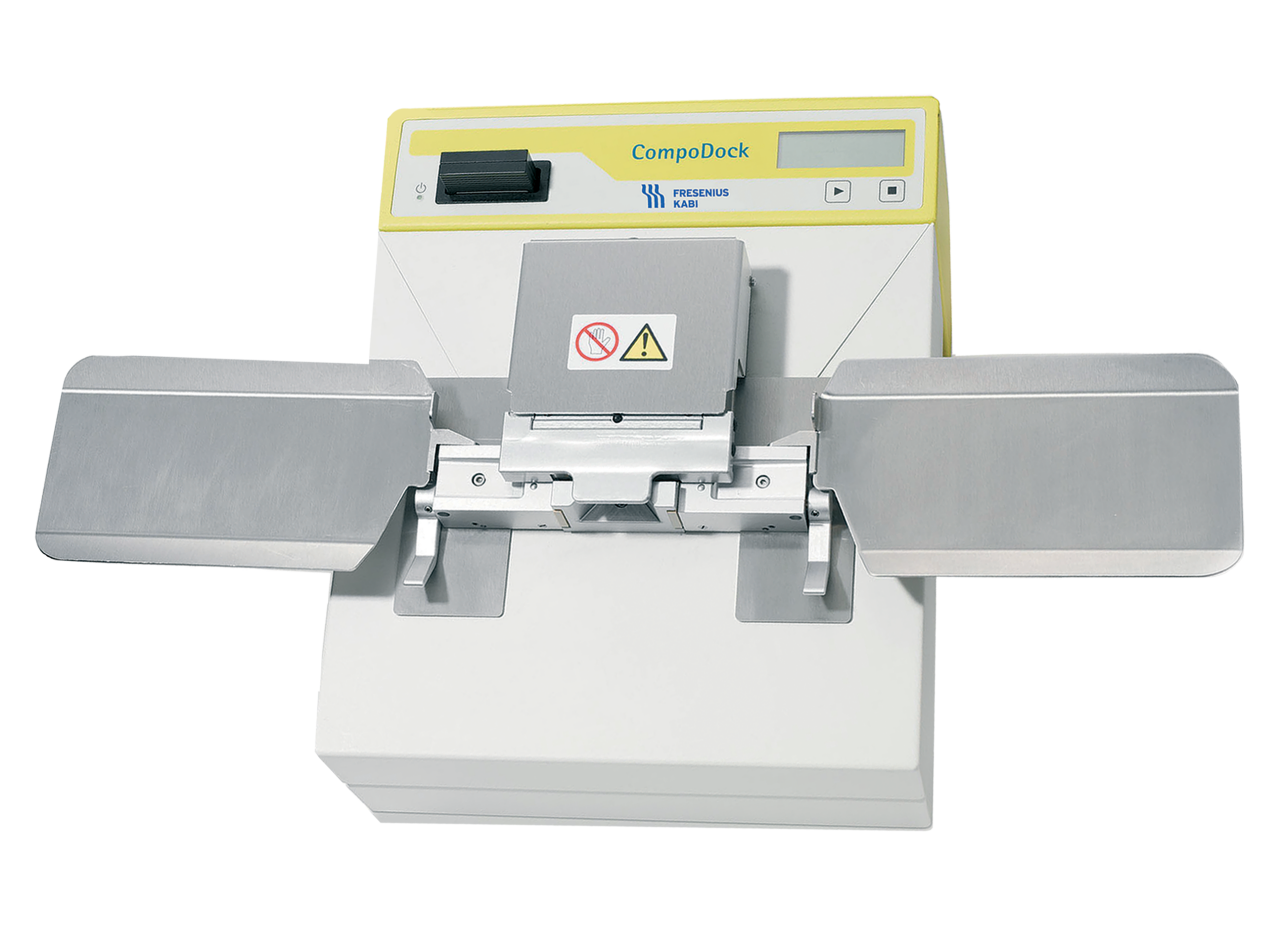

CompoDock

Waferless Technology for a Sterile Connection in a Fully Closed System

Designed to prevent tube mix-up, CompoDock provides a quick and simple process to load bag systems. CompoDock uses only clamps; no wafer loading necessary and no contaminated wafers to be disposed of.


Unique waferless technology

  • Moving bag support trays reduce the required tube length and ensure correct positioning of tubes
  • Clamps to assure optimal tube alignment
  • The construction of the position cover supports fail-safe handling

Refer to Operator’s Manual and/or Instructions for Use for the full list of warnings and cautions associated with the uses of products or devices shown on this site.

Details

Fully Closed System

CompoDock is a unique system that has a permanent heating element with the tubes placed inside clamps.
  • The docking process is fully automated. After the clamps are closed, the tube ends are sealed.
  • The clamps move to the upper heater and docking chamber
  • The permanent heating element comes out and heats the sealed tube ends without touching them
  • In the docking process, both clamps move together to connect the heated tube ends
  • The dock is now ready and can easily be opened by pressing the connected tubes

Tube Compatibility and Processing Time
CompoDock enables you to make sterile connections between medical PVC tubing:
  • Between all wet and dry tubing combinations (wet/wet · wet/dry · dry/dry)
  • With outer diameter varying for standard versions between 3.9 mm and 4.6 mm (3.9/3.9 · 3.9/4.6 · 4.6/4.6)
  • With a process cycle time of approximately 20 seconds
For other tube dimensions please contact your local Fresenius Kabi representative.

Dimensions
Height220 mm
Width340 mm
Depth450 mm
With bag trays700 mm
With side tables750 mm

Contact your local Fresenius Kabi representative for additional technical information.

CodeItemQuantity
9028721CompoDock DM1 unit
9028921DockMaster NET1 unit
9025611Scanner1 unit
9028681CompoDock Counter 25001 unit
9028691Compodock Counter 10001 unit
9028701Compodock Counter 5001 unit

Contact your local Fresenius Kabi representative for additional information.
