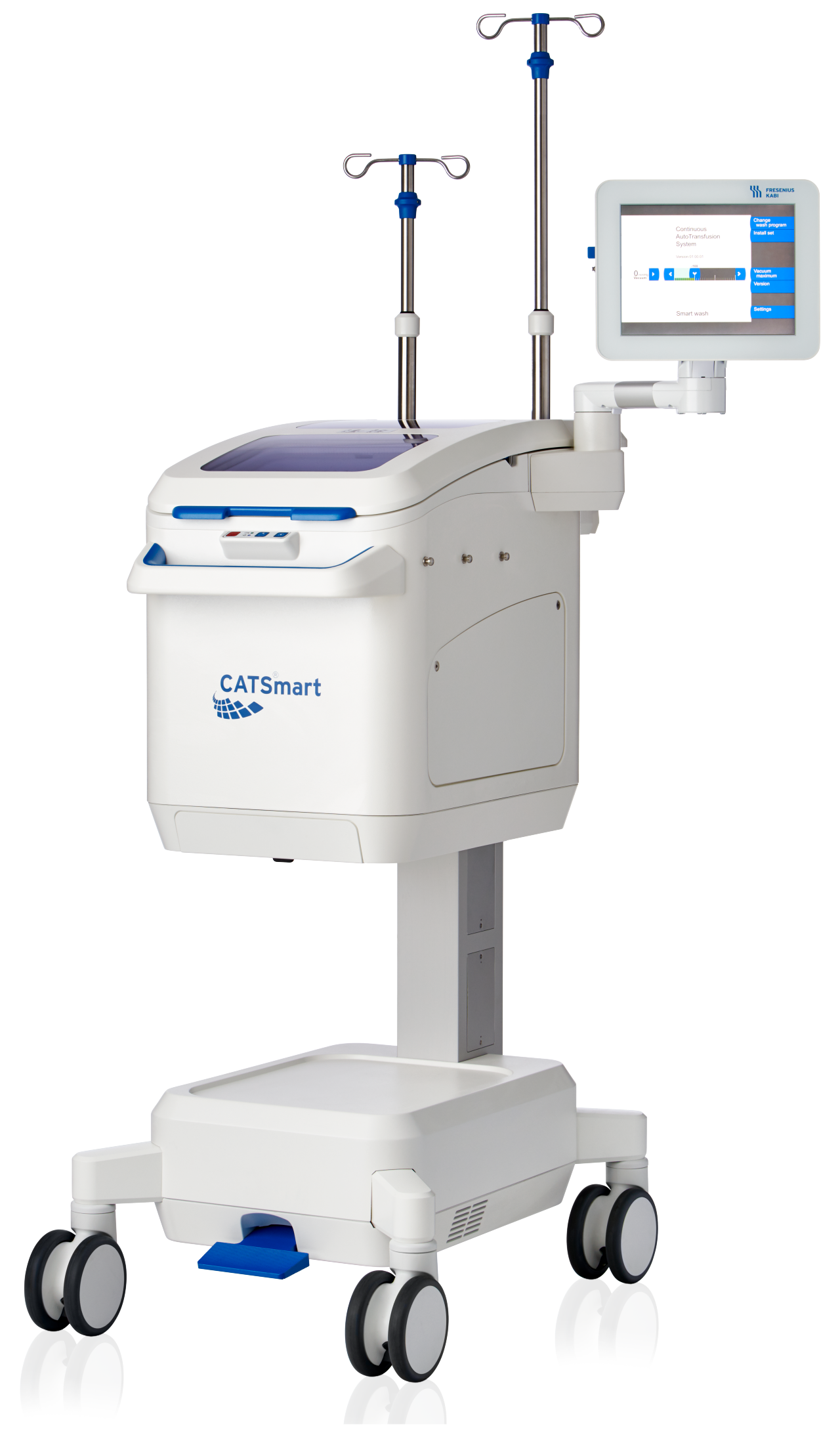

CATSmart Autotransfusion System

Continuous Autotransfusion System Designed for Intra- and Post-Operative Surgical Procedures

CATSmart Autotransfusion System provides autologous packed red blood cells by utilizing a continuous flow centrifuge method.

The autotransfusion platform works on the principle of a continuous flow centrifuge. This unique technology delivers a consistent high-quality product that meets clinical standards.

Refer to Operator’s Manual and/or Instructions for Use for the full list of warnings and cautions associated with the uses of this product

Details

Continuous Processing, Fast PRC Access

CATSmart’s proprietary centrifuge system continuously pushes shed blood through the spiral channel of the washing chamber and simultaneously separates, washes and packs red cells.

The PRC sensor monitors the RBC interface and auto-adjusts pump flow rates for optimal results.
  • Visualization of incoming and outgoing hematocrit values and process parameters on screen.
  • Autostart blood processing automatically starts the wash program based on a preselected volume.
  • One-size-fits-all efficiency with single-sized washing chamber can process any volume of shed blood.
  • CATSmart eliminates >99% of non-emulsified fats while maintaining an average hematocrit of 60% regardless of wash program1.
1. Internal data held on file by Fresenius Kabi

Four Specific Wash Programs

Low Volume wash3 is especially designed to process even small shed blood volumes containing about 40 mL of red cells with a high recovery rate.

Smart wash3 ensures optimal balance between PRC output rate and wash-out performance. Standard program is recommended for the majority of surgical cases.

Flex wash3 is recommended to be used in standard or routine cases where highly contaminated or damaged blood processing or low volume is not a factor. It can be adjusted between washing factors. A fast processing of shed blood with high concentrate quality. Lower saline usage in comparison to Smart wash.

Emergency wash3 is the fastest blood processing program for quick access to washed PRC under emergency conditions.


Performance
  • All four CATSmart washout programs deliver RBC recovery levels above 90% along with impressive HCT and washout rates2
  • Efficient processing of small blood volumes1
  • One autotransfusion set for all programs and applications
  • Adjustment of suction vacuum on screen for quick and easy response to changes

1. Seyfried T, Breu A, Gruber M, Reipert J, Hansen E. Processing of small volumes in blood salvage devices. Transfusion 2014; 54: pp 2775
2. CATSmart® in vitro verification data with banked blood – Fresenius-Kabi internal data file: 2015
3. CATSmart® user manual

Wash ProgramsPRC Flow
Low Volume Wash25 mL/min
Smart Wash28 mL/min
Emergency Wash100 mL/min
Flex Wash35 mL/min
Delivery Flow Rates
Red Blood Cell Pump0 – 190 mL/min
Shed Blood Pump0 – 350 mL/min
Washing Solution Pump0 – 400 mL/min
Centrifuge Speed0 – 2400 RPM
